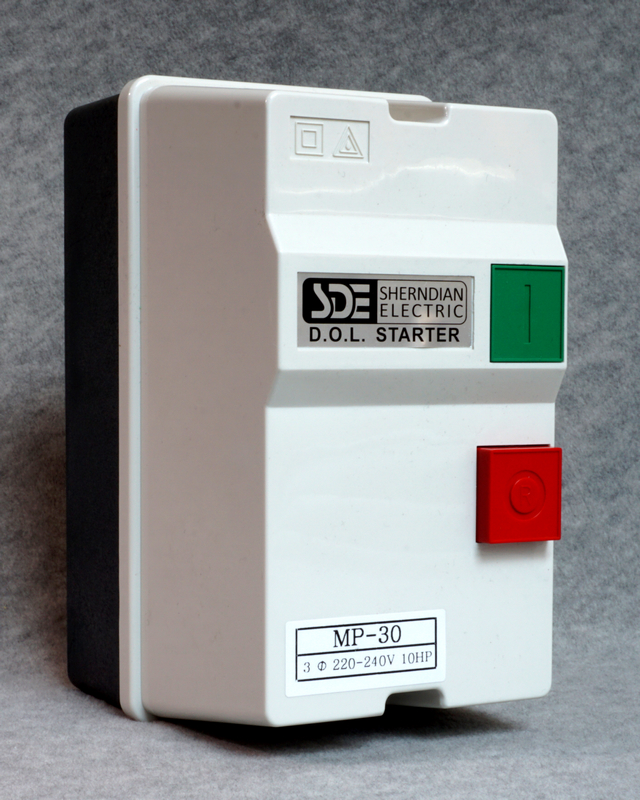

MP-30                                  MP-30-STOP
   MP-30E                               MP-30E-STOP
MP-30-LOCK                             MPE-30
MP-30E-LOCK                          MPE-30E

額定容量
 Rated Capacity		 HP KW
單相 1 Phase 100~110V 2 1.5
200~220V 5 3.7
三相 3 Phase 200~240V 10 7.5
380~440V 15 11
500~550V 15 11
外殼材質
 Casing Material

            上殼: ABS防火  下殼: PC+纖維防火
            Cover: ABS, Fire-retardant.
            Base: PC + Fiber, Fire-retardant.

淨重(g)

Net Weight

1106

外形尺寸(mm)
Outline Dimensions

長(L)  X  寛(W)  X  高(H)
192    X    109    X   132

E 代號表示繼電器有欠相保護.
E: Thermal relay with overload and phase loss protective equipment.

特點:

1. 完全防水防塵.
2. OFF押扣為凸起型, 可因應緊急措施.
3. 電磁接觸器之電器和機械壽命長.
4. 外型美觀, 堅固耐用.
Feature:
1. Protection for dust and waterproof.
2. Raised OFF button for emergency stop.
3. Long mechanical and electrical endurance of contactor.
4. Elegant external, heavy duty life, easy operation.

　
