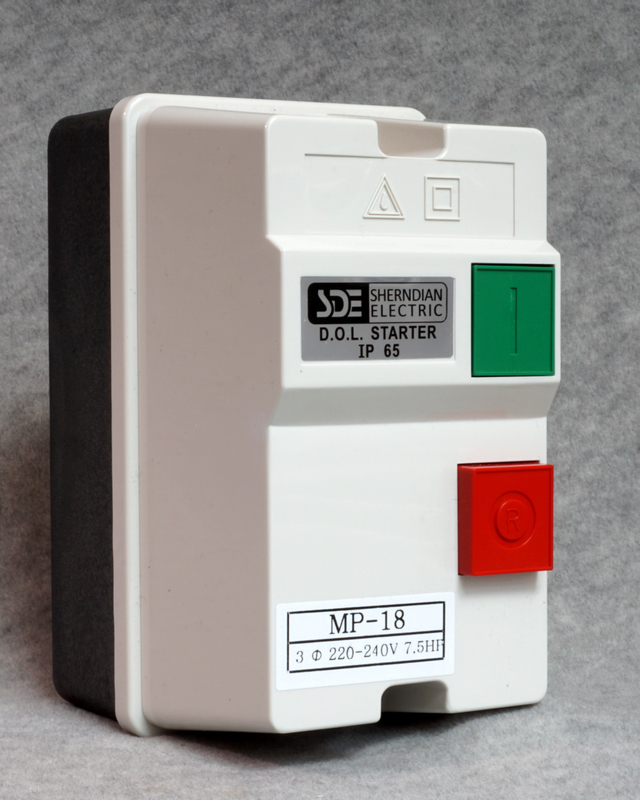

MP-18                                    MP-18-STOP
   MP-18E                                  MP-18E-STOP

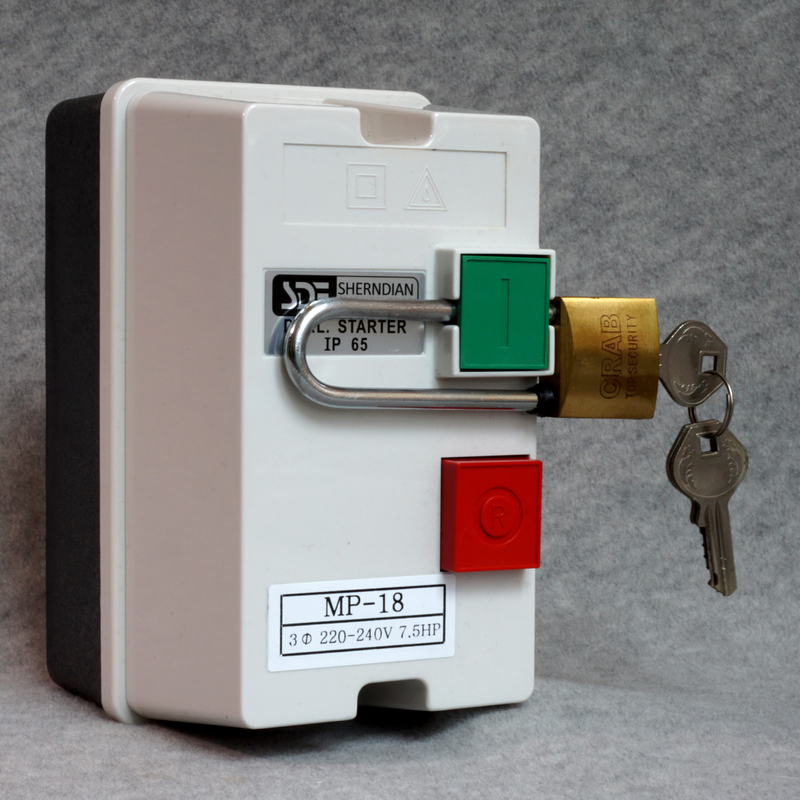

MP-18-LOCK                             MPE-18
MP-18E-LOCK                          MPE-18E

額定容量
 Rated Capacity		 HP KW
單相 1 Phase 100~110V 1.5 1.1
200~220V 3 2.2
三相 3 Phase 200~240V 7.5 5.5
380~440V 10 7.5
500~550V 10 7.5
外殼材質
 Casing Material

上殼: ABS防火  下殼: PC+纖維防火
Cover: ABS, Fire-retardant.
Base: PC + Fiber, Fire-retardant.

淨重(g)

Net Weight

870

外形尺寸(mm)
Outline Dimensions

長(L)  X  寛(W)  X  高(H)
163    X    94    X   115

E 代號表示繼電器有欠相保護.
E: Thermal relay with overload and phase loss protective equipment.

特點:

1. 完全防水防塵.
2. OFF押扣為凸起型, 可因應緊急措施.
3. 電磁接觸器之電器和機械壽命長.
4. 外型美觀, 堅固耐用.
Feature:
1. Protection for dust and waterproof.
2. Raised OFF button for emergency stop.
3. Long mechanical and electrical endurance of contactor.
4. Elegant external, heavy duty life, easy operation.

　
