MP-09 Magnetic Starter | MP-09 電磁開關

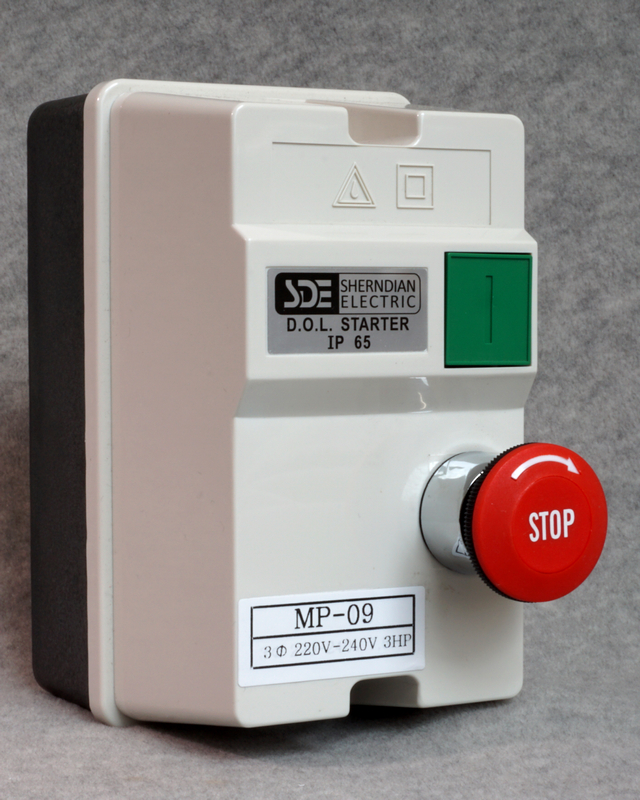

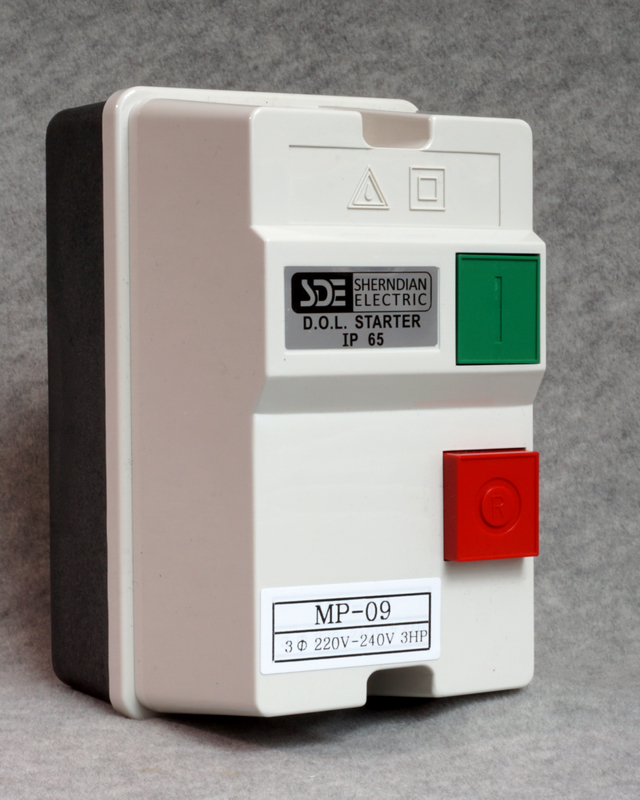

MP-09 MP-09-STOP MP-09E MP-09E-STOP

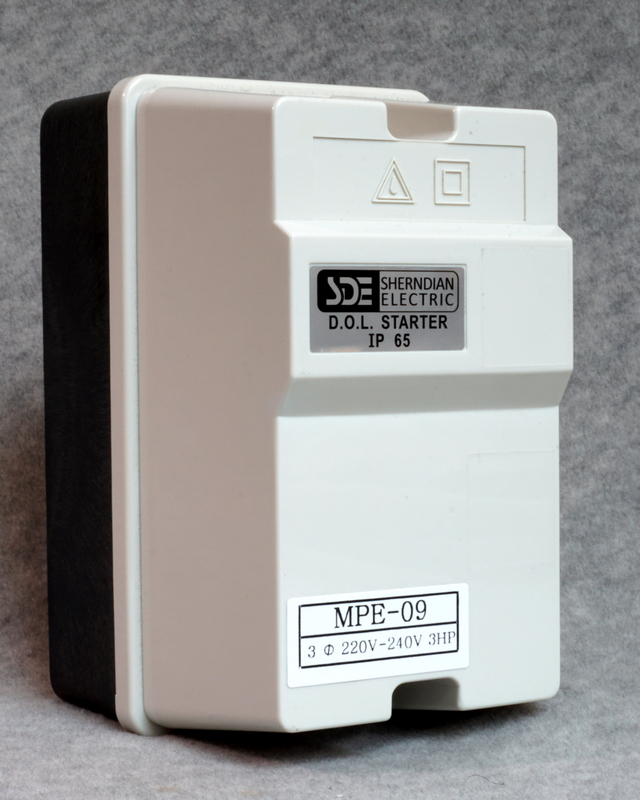

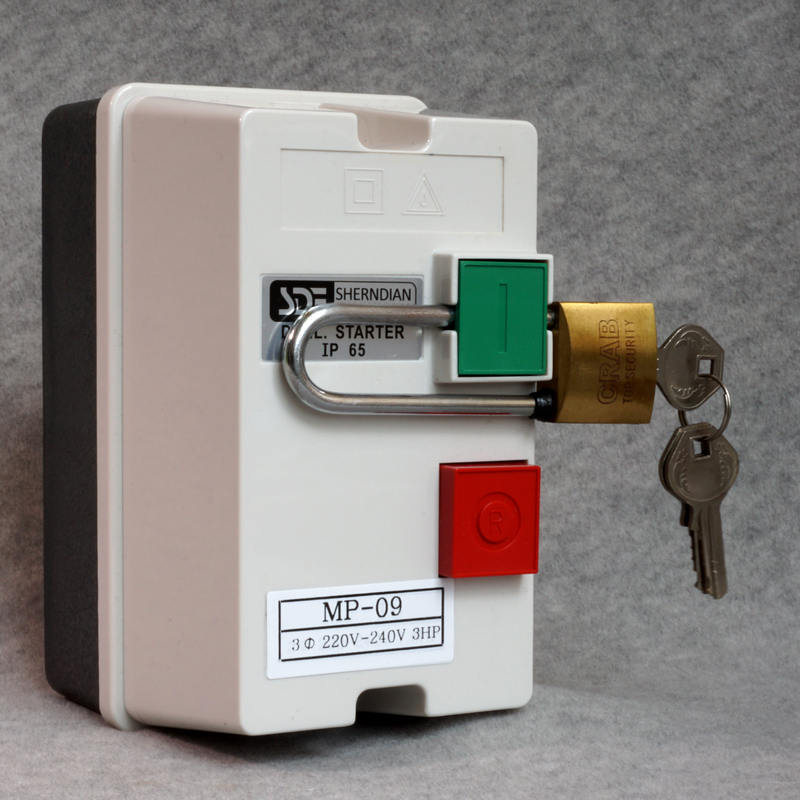

MP-09-LOCK MPE-09 MP-09E-LOCK MPE-09E

額定容量 Rated Capacity		HP	KW
單相 1 Phase	100~110V	1	0.75
	200~220V	2	1.5
三相 3 Phase	200~240V	5	3.7
	380~440V	7.5	5.5
	500~550V	5.5	4
外殼材質 Casing Material		上殼: ABS防火下殼: PC+纖維防火 Cover: ABS, Fire-retardant. Base: PC + Fiber, Fire-retardant.
淨重(g) Net Weight		844
外形尺寸(mm) Outline Dimensions		長(L) X 寛(W) X 高(H) 163 X 94 X 115
E 代號表示繼電器有欠相保護. E: Thermal relay with overload and phase loss protective equipment.

特點:

1. 完全防水防塵.
2. OFF押扣為凸起型, 可因應緊急措施.
3. 電磁接觸器之電器和機械壽命長.
4. 外型美觀, 堅固耐用.

Feature:
1. Protection for dust and waterproof.
2. Raised OFF button for emergency stop.
3. Long mechanical and electrical endurance of contactor.
4. Elegant external, heavy duty life, easy operation.
